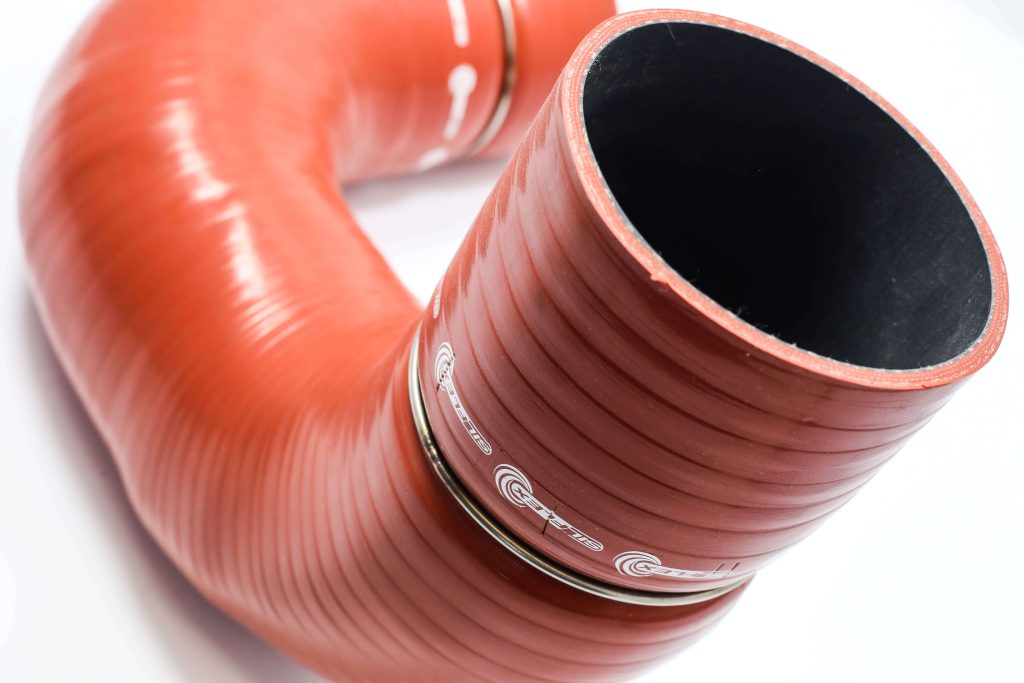

Turbo / CAC Application Silicone Hose

Silflex Turbocharger & CAC (charge air cooled) hoses are manufactured in silicone with an aramid reinforcing fabric as standard, allowing higher temperature & pressure.

Silflex Turbocharger & CAC (charge air cooled) hoses are manufactured in silicone with an Aramid reinforcing fabric as standard, allowing higher temperature & pressure resistance. For more demanding requirements, construction can incorporate wire reinforcing, offering greater resistance to profile changes & improved flexibility respectively. Available in a wide range of configurations and dimensions, Silflex Coolant Hose is manufactured from the highest grade silicone rubber formulated specifically for automotive applications. Superb reliability helps reduce maintenance and down time while providing greater engine protection. A high sheen finish is standard with other options available.

Engineering Options

Wire Reinforcement

A wire helix between the plies helps to prevent collapse in negative pressure conditions.

Part Marking

Part marking with Silflex or customer logos and part numbers assists with product identification and traceability.

Anti Abrasion Sleeves

Anti Abrasion Sleeves to protect against localised abrasion.

Location Marking

Marks can be added to the hose to specify where components are to be placed such as clips helping speed up installation.

Inserts & Connectors

Hoses can be supplied with custom inserts and automotive hose connectors.

Our advanced in-house manufacturing methods enable the creation of fully custom silicone hose designs, including complex one-piece assemblies that minimise joint failure and leak risk, and improve overall flow performance. Our engineering team can integrate inserts, branches, and specialist features directly into the hose structure, ensuring a precise, durable solution tailored to each application.

Fill in form below to receive our comprehensive Design Aid+ Document.

Construction

Construction consists of several plies of silicone, reinforced with Aramid fabric. The number of plies will vary depending on the working pressure, bore size, and required wall thickness.

Convoluted Hose is produced to suit most power unit applications. Single or multiple convolution variants are available, providing increased flexibility & the ability to absorb greater levels of engine vibration.

A galvanised steel wire helix can be added, buried between the plies so that it is not exposed on either the inside or outside of the hose, perfect for high or negative pressure applications or where improved flexibility is required. Additionally the hoses can be supplied with either convoluted or castellated walls where needed.

Depending on working temperature, there are various build options available that allow the hose to function properly between -50ºC and 305ºC.

General Use

Silflex turbocharger hose has been specifically designed for the demanding requirements of truck, bus and rail applications. It is primarily designed for use in turbocharger systems. It can however be used in many other applications where the properties of silicone are preferable to those of other rubbers, where a flexible joint is required between rigid pipe work, or where higher working temperatures compared to standard silicone/polyester are required.

Production Volumes

Thanks to our fully in-house manufacturing capability, Silflex offers exceptional flexibility in production volumes. We support a diverse customer base with requirements ranging from rapid-turnaround prototypes and low-volume specialist builds to high-volume, repeat production for major OEM programmes. Our end-to-end, self-contained operation allows us to deliver what many suppliers can’t – a responsive, tailored service that adapts to each customer’s exact specifications. Whether the need is bespoke or large-scale, Silflex ensures every silicone hose solution is engineered and manufactured with precision, quality, and speed.

Fuel & Oil Mist

State-of-the-art Fluorosilicone & FKM/Viton Profuel linings are available if there is the possibility of the hose coming in to contact with fuel mist. Silflex Fluorosilicone lined turbocharger hose has been specifically designed for the demanding requirements of truck, bus and rail applications. It is primarily designed for use in turbocharger systems & intercooler systems where the medium flowing through the hose is likely to degrade the standard silicone. e.g. Fuel Oils, Diesel Fuel, etc. This comes in the form of a lining of Black Fluorosilicone, covered with Plies of silicone, reinforced with Aramid fabric.

Standard Parts

Silflex produce a range of standard parts suitable for various coolant applications that are kept in stock. Variations of colour, part marking or specialist linings will require a lead time for production.

Hose elbows are produces to 90°, 45° & 135° bends with reducers to suit diameter changes. Reducers and Couplers enable a smooth flow transition between various components & pipe bore sizes. Silflex coolant hose couplers enable the connection of rigid pipe work to help eliminate vibration, increase flexibility and allow easier assembly and maintenance.

Straight hose lengths provide a flexible link between system pipe work and components. Wire reinforcement & convolutions are also available to avoid kinking due to angles or movement, and can also be manufactured in special materials or formulations.
